Enhancing Data Redundancy and Availability with DFS Replication on Windows Server 2022

Distributed File System (DFS) Replication is a valuable feature in Windows Server 2022 that allows organizations to replicate files between multiple servers for data redundancy and availability. This technology plays a crucial role in ensuring that files are consistently available to users and offers a level of fault tolerance in case of server failures or network issues. In this article, we will explore the benefits of DFS Replication and provide a guide on how to implement and manage this feature in a Windows Server 2022 environment.



Benefits of DFS Replication:

1. Redundancy and High Availability: By replicating files across multiple servers, organizations can ensure that data is always available, even in the event of a server failure.

2. Load Balancing: DFS Replication helps distribute file access requests across multiple servers, preventing any single server from becoming overloaded.

3. Bandwidth Efficiency: DFS Replication optimizes bandwidth usage by transferring only the changes made to files, reducing network congestion.

4. Ease of Management: Centralized management tools in Windows Server make it easy to set up and monitor DFS Replication configurations.



How to Set Up DFS Replication in Windows Server 2022:

1. Install DFS Replication Role:

   - Log in to your Windows Server 2022 machine with administrative privileges.

   - Open Server Manager and navigate to "Add roles and features".

   - Select "File and Storage Services" and then "DFS Replication" as the sub-role to install.

   - Complete the installation process.



2. Configure Replication Groups:

   - Open the DFS Management console from Server Manager.

   - Create a new replication group by right-clicking on "Replication" and selecting "New Replication Group".

   - Follow the wizard to name the group, specify replication folders, and set replication topology.

   - Add servers to the replication group and define replicated folders on each server.



3. Monitor and Manage Replication:

   - Use the DFS Management console to monitor the replication status of groups and folders.

   - Configure replication schedules, bandwidth limits, and other settings as needed.

   - Utilize Event Viewer to troubleshoot replication issues and ensure smooth operation.



4. Best Practices:

   - Regularly monitor replication status and event logs for any issues.

   - Implement robust security measures to protect replicated data.

   - Test failover scenarios to ensure data availability in case of server failures.



By following these steps and best practices, organizations can leverage DFS Replication on Windows Server 2022 to enhance data redundancy, availability, and efficiency across their network infrastructure.



Remember, proper planning, monitoring, and maintenance are essential to leverage the full benefits of DFS Replication in your Windows Server environment.



Benefits of DFS Replication

• Efficient Replication: DFSR uses remote differential compression (RDC) to replicate only changed file blocks, reducing bandwidth usage.
• Multiple-Master Replication: DFSR allows multiple servers to act as masters, ensuring redundancy.
• Sysvol Replication: AD DS uses DFSR to replicate the sysvol folder in Windows Server 2008 and later domains.

Remember, DFS Replication is a powerful tool for keeping your data synchronized across servers, especially when dealing with limited bandwidth connections.

For more detailed information, you can refer to the official Microsoft Learn article on DFS Replication1.



A Step-by-Step Guide to Installing DFS Replication in Windows Server 2022

Distributed File System (DFS) Replication is a powerful feature in Windows Server that enables replicating files between multiple servers to ensure data availability and redundancy. In this article, we will provide you with a comprehensive guide on how to install DFS Replication in Windows Server 2022.



Step 1: Install the DFS Replication Role

1. Log in to your Windows Server 2022 machine with an account that has administrative privileges.

2. Open the Server Manager by either clicking on the icon on the desktop or searching for it in the Start menu.

3. In the Server Manager, click on "Add roles and features" from the Dashboard or manage menu.

4. Click Next until you reach the "Select server roles" page.

5. Check the box next to "File and Storage Services" to select it.

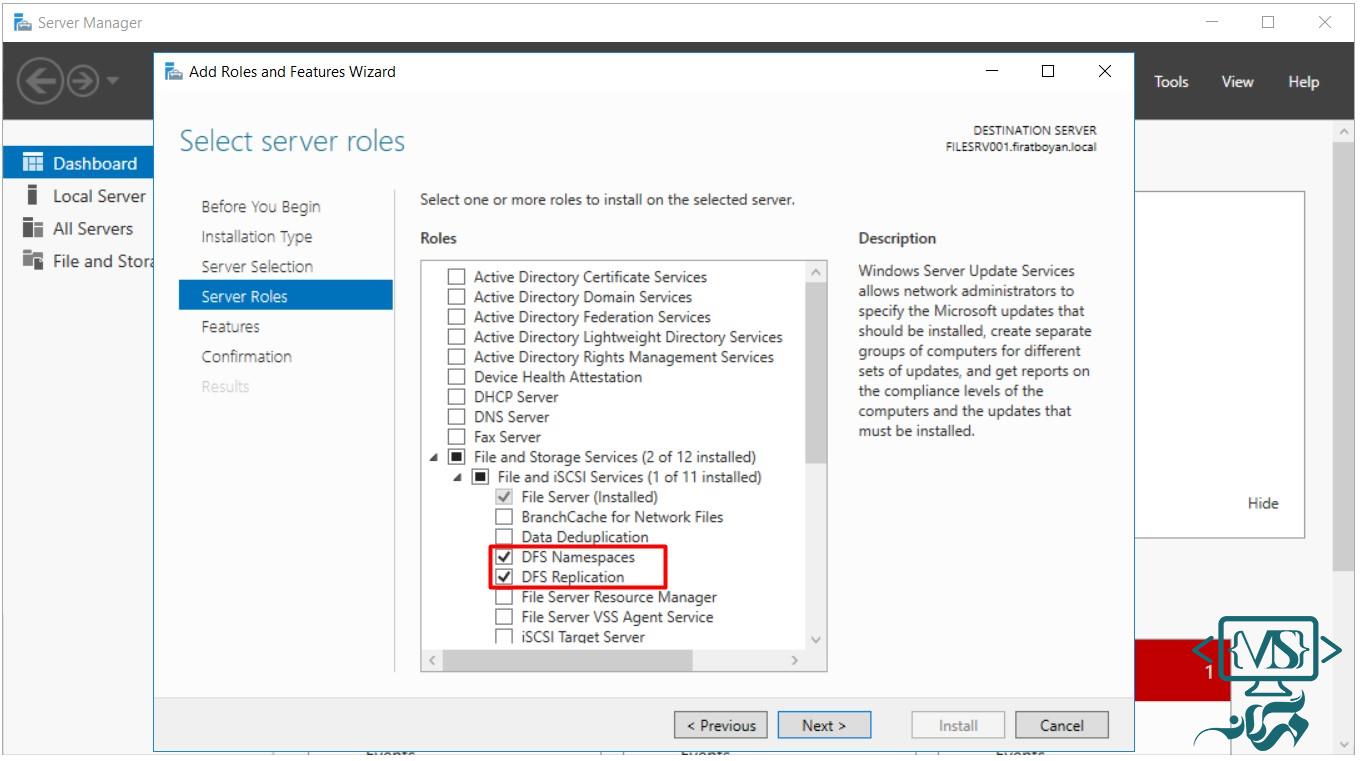

6. In the sub-roles list, check the box next to "DFS Replication" and "DFS Namespaces" and click Next.





7. Review the information on the Features page and click Next.

8. Click Install to start the installation process.



Step 2: Configure DFS Replication

1. Once the installation is complete, open the Server Manager and click on the "File and Storage Services" option in the left-hand menu.

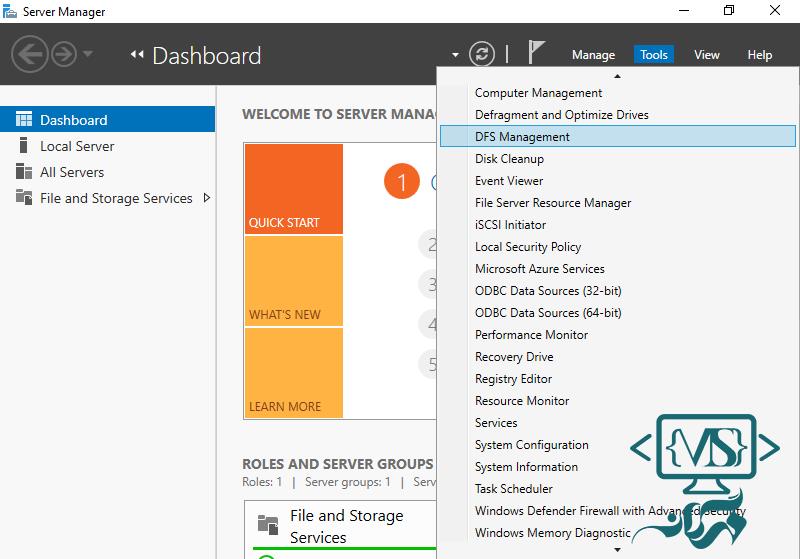

2. Click on "DFS Management" to open the DFS Management console.





3. Right-click on "Replication" in the DFS Management console and select "New Replication Group" to create a new replication group.

4. Follow the wizard to configure the replication group, including specifying the group name, selecting the folders to replicate, and choosing the replication topology (Hub and spoke or Full mesh).

5. Add servers to the replication group by specifying the server names and selecting the folders to replicate on each server.

6. Review the settings and click Finish to create the replication group.



Step 3: Monitor and Manage Replication

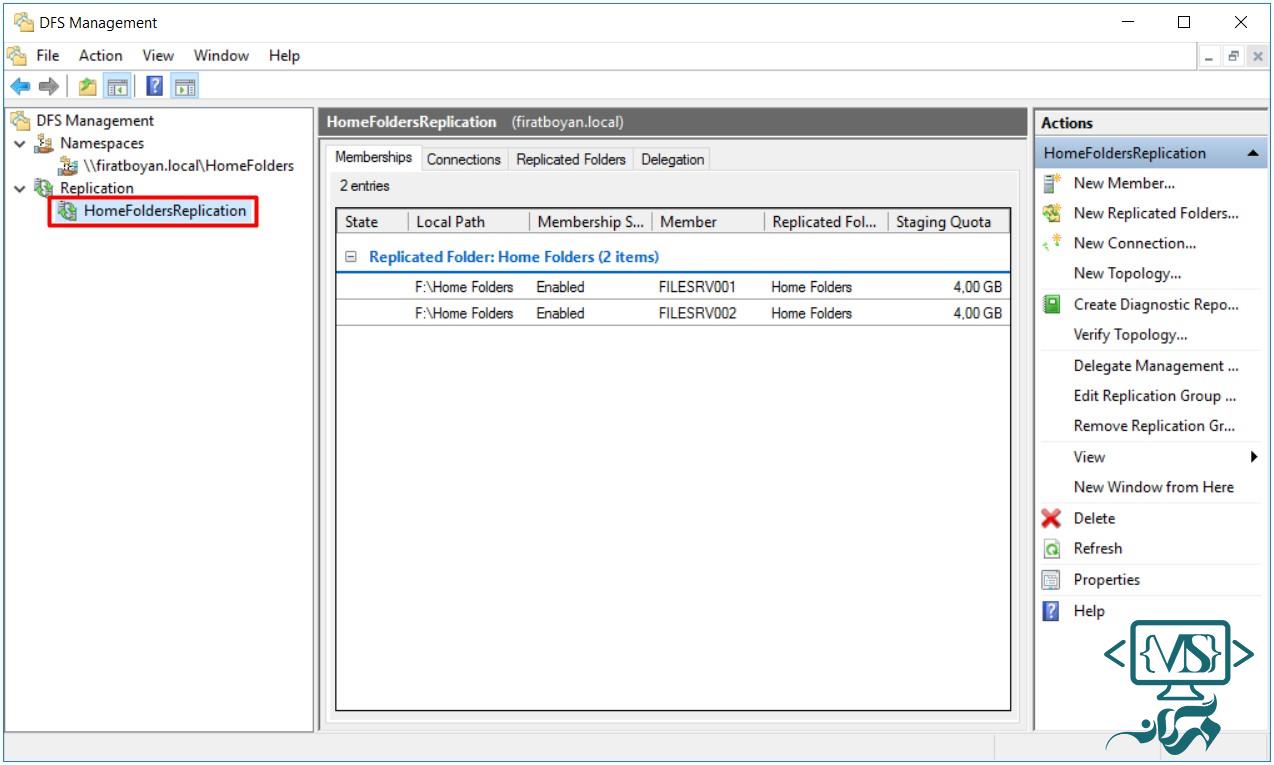

1. In the DFS Management console, you can monitor the replication status of each replication group and individual replicated folders.

2. You can configure replication schedules, bandwidth usage limits, and other settings by right-clicking on the replication group or individual folders and selecting properties.





3. Use the event logs in Event Viewer to troubleshoot any replication issues and monitor the health of the DFS Replication service.



By following these steps, you can successfully install and configure DFS Replication in Windows Server 2022, providing efficient and reliable file replication across your network. Remember to regularly monitor the replication status and settings to ensure smooth operation and data consistency.



Happy Replication!
